ESPARGOS One Request a Quote

Shipping Address

Billing Address (optional)

Your order *

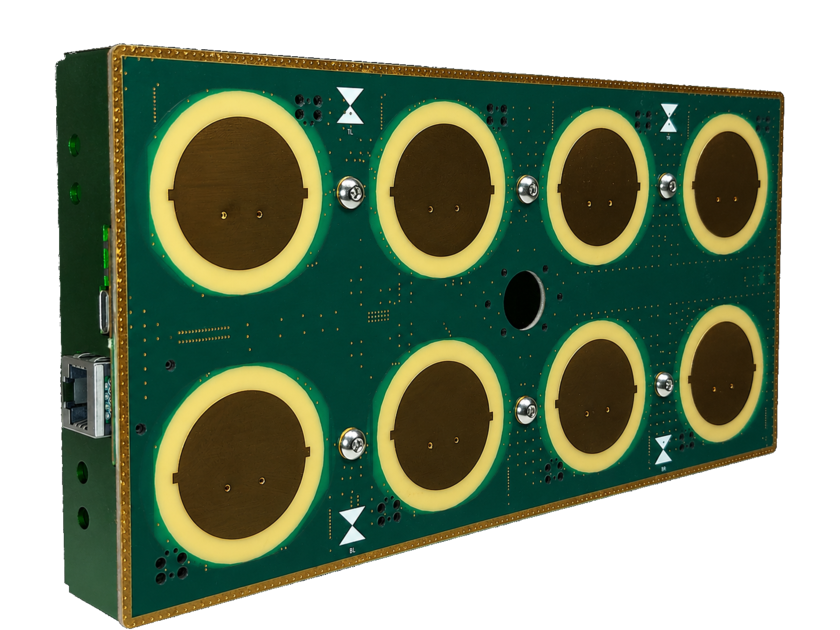

ESPARGOS One - Core Kit i ESPARGOS One is our ESP32-based WiFi sensing antenna array. The Core Kit is aimed at researchers, educators and early adopters for evaluation. Included:

• 1× ESPARGOS One
• 1× Network Cable 2m
• 1× ESPARGOS One Manual

5 in stock · Max 8 per request

We don't have enough of this kit in stock right now, but more are on their way. You can still request a quote, and we will review it once stock is replenished.

350.00 € per unit · net

− +

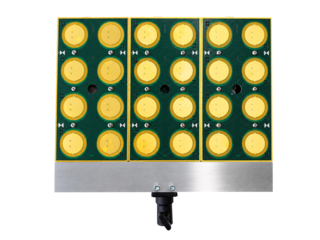

ESPARGOS One - Aperture Kit 6x4 i Three ESPARGOS One arrays pre-mounted side by side and pre-wired for synchronization: one phase-coherent 6x4 aperture with 24 dual-polarized antennas at half-wavelength spacing, for finer angular resolution than a single array. The shared clock and phase reference are distributed internally, so apart from Ethernet there is nothing to wire up. Ships pre-assembled and pre-configured, with a spigot clamp for tripod mounting and a printed configuration supplement. Included:

• 1× ESPARGOS Aperture Kit 6x4
• 3× Network Cable 2m
• 1× ESPARGOS One Manual
• 1× Aperture Kit 6x4 Configuration Supplement

Out of stock · Max 2 per request

We don't have enough of this kit in stock right now, but more are on their way. You can still request a quote, and we will review it once stock is replenished.

1385.00 € per unit · net

− +

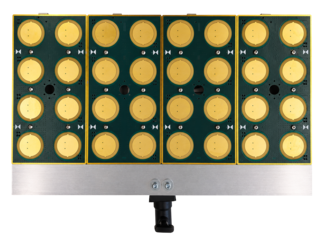

ESPARGOS One - Aperture Kit 8x4 i Four ESPARGOS One arrays pre-mounted side by side and pre-wired for synchronization: one phase-coherent 8x4 aperture with 32 dual-polarized antennas at half-wavelength spacing, our largest ready-made aperture. The shared clock and phase reference are distributed internally, so apart from Ethernet there is nothing to wire up. Ships pre-assembled and pre-configured, with a spigot clamp for tripod mounting and a printed configuration supplement. Included:

• 1× ESPARGOS Aperture Kit 8x4
• 4× Network Cable 2m
• 1× ESPARGOS One Manual
• 1× Aperture Kit 8x4 Configuration Supplement

Out of stock · Max 2 per request

We don't have enough of this kit in stock right now, but more are on their way. You can still request a quote, and we will review it once stock is replenished.

1735.00 € per unit · net

− +

You will need an additional resistive power splitter to operate two ESPARGOS One arrays phase-coherently (not included). For details, see manual.

Special signal splitter required for multi-board phase-coherent systems with >2 arrays (not included with the Core Kit). For a ready-made multi-array system with internal reference distribution, consider the pre-assembled Aperture Kits above. For details, see manual.

Notes / requirements

Submitting this request does not create a binding order. After manual review, we will email you a PDF quote including the datasheet and terms & conditions. Please accept or decline the quote within a week of receiving it; we will reserve the antenna arrays for you while we wait for your response. Due to various regulatory constraints (e.g., WEEE requirements), we may need to prioritize certain requests over others.
